Yacht Zulu is up for sale. Very fairly priced for quick sale. Ready for blue water cruising.
Summary and further description; Photo gallery
Summary Description
Name: ZULU
Year/Launched: 1988
Price: US$139,000 fixed (NZ$159,000)
Located: Bay of Islands, NZ
Hull Material: Aluminum
Engine/Fuel Type: Single Diesel
Description:
Fin keel, blue water cruiser—Seattle, Alaska, Mexico, South Pacific, NZ.
Cutter-rigged Masthead Sloop with 1 furling headsail and full cruiser sail wardrobe.
Three sleeping cabins, with master aft; single-berth cabin to starboard; and double V-berth cabin forward. Gas stove/oven and large fridge/freezer. Two heads.
Comprehensive communications with additional power-generating capacity to include KISS wind generator and two solar panels. Good live a board.
Designer: Naval architect--Grahame Shannon, Vancouver Island, BC, Canada.
Professional Builder: TD Manufacturing Port Coquitlam, BC, Canada.
Dimensions: LOA 44’8’’
LWL: 38’6”
Beam: 13’
Displacement: 27,000 lbs
Draft: 7’
Bridge Clearance: 59’
Ballast: 9,500 lbs
Gross Tonnage: 20 GRT
Enquire now for extensive inventory and specs to--
Marilyn Marais Email: yachtzulu@gmail.com
Christian Eckhoff Email: ceckhoff@xtra.co.nz/ ZL1DIY@winlink.org
Home: 64+09-403-7281
Johny Bjorngard Email: joheyo98@yahoo.com Cell: 64+021-866-177
Further Description
Accommodations:
Layout, aft going forward--
Aft

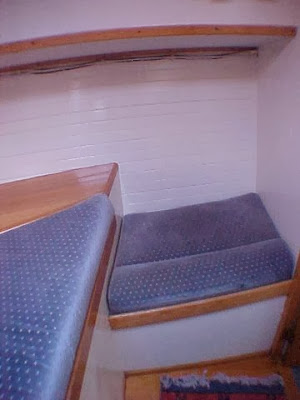

cabin with double berth—head to starboard; seat with storage underneath;

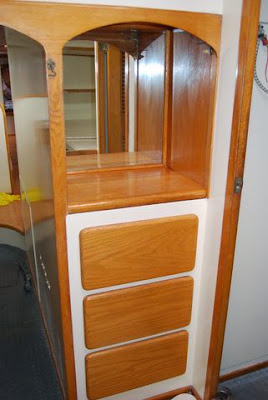

lockers to port and starboard off berth; vanity with mirror and 3 draws.
Access to machinery space/workroom is through door via head to starboard.

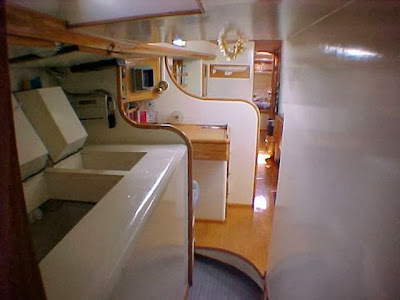

There is a walk through going forward into the main
cabin on the port side.
The fridge and freezer is to port of walk through and engine access to
starboard.

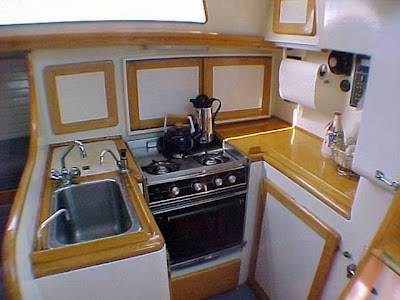

The navigation station is aft of main salon to port
with galley opposite to starboard.

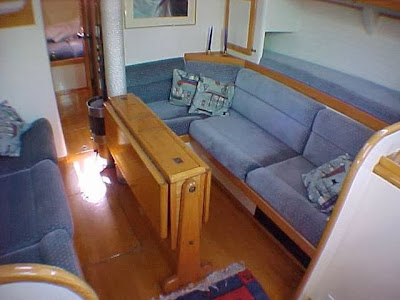

Main salon offers port and starboard settees with centerline folding table.
There is a pilot berth to starboard in main salon an end of which houses the
diesel tank that feeds the Dickinson Antarctic cabin heater forward of folding
table.

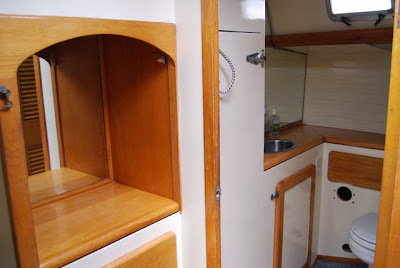

The forward section of the boat offers a second head to
port, a single-berth cabin to starboard, a hanging locker and cabinet draws

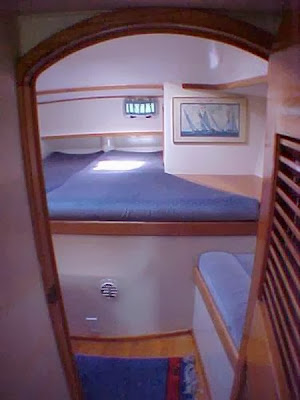

forward of head to port; and a double V-berth cabin forward.
Headroom and berth length--
Main salon/galley headroom is 6’4” at highest point in galley and 6’3” at
highest point in main salon.
Both sides of the ceiling taper down to about 6’0” at edges with curve of deck.
Berth length of all settees plus the pilot berth is 6’8”
Forward cabin: the boat tapers down to about 6’.0”.
The berth length of starboard side cabin is 6’4” and the forward V-berth cabin
is 6’3”.
Aft cabin: 5’10” headroom at entry to 6’0” and greater in different areas. Berth
length is 6’5”. The aft head is also 6’0” and greater.

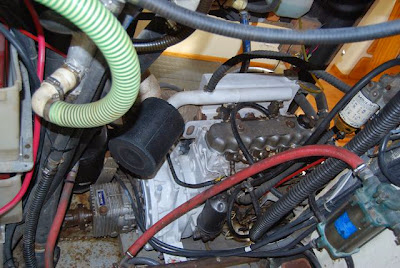

Engine:
Type: Isuzu diesel C240 HP:
75 Cruising speed: 7.5 knots
Hours: NA Age:
1988
Tankage:
Fuel: 100 gals Water: 300 gals
Heating/Refrigeration/Oven:

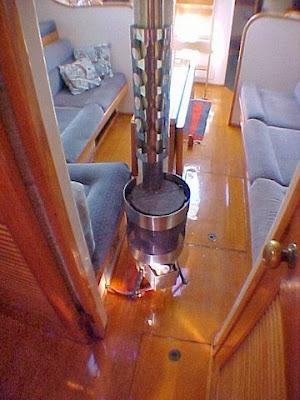

Dickinson

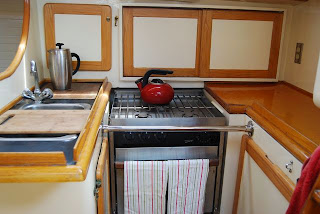

Antarctic diesel cabin heater; Rebuilt fridge/freezer; Force 10 Gourmet propane
galley range/oven.
Electronics:
Raytheon
R20 radar
Wagner autopilot
Garmin 128 and 72 GPS
ICOM 802 HAM Marine transceiver with Sp-24 speaker; Pactor II controller;
AT-140 automatic antennae tuner; MN-100 Antenna matcher
Northstar wind indicator and Navman depth sounder
Uniden ES UM525 VHF plus two hand held
Epirb and Automatic Identification System receiver (AIS) and much more
miscellaneous
Electrical:
12/120 volt system
(6) 6 volt deep cycle installed new 02/2013 in (2) 12 V banks (check)
Link 10 battery monitor. Honda EU series generator
Sails
and winches
Main/three
reefs (2008 new); headsails 100%, 150%, and Yankee.
Gennaker with snuffer.
900 sq ft sail area /15.9 Displacement. Ratio
6 Lewmar winches (check)
Ground
Tackle
45
lb CQR, 25 lb Danforth, Bruce, Spade, (only have 3 anchors. Will check CQR or Danforth)
200’ chain purchased 2011 and lots of line
Canvas
Mainsail
cover and SS framed cockpit bimini new 2011/2012, plus awning
Dinghy
Rubber: 10.6 ‘ 4-person Achilles Model SR
JP-ACH00130J405 with wheels
Fiber glass: Sailing dinghy (To be
determined if leave on board)
Outboard Motor: Mercury 9.9
Additional
Equipment
BBQ

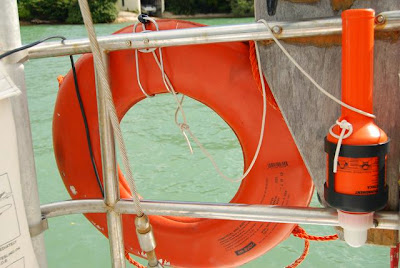

Life ring with light attached
Overboard rescue life sling
Man overboard pole
Outboard motor mount on stern pulpit
Folding mast steps to first spreader
Step bench forward of mast
Stainless steel step off stern sugar scoop step
Bumpers (8) and (2) brand new oversized bumpers stowed in V-berth
Viking Life Raft—Type 1 Group A. Serial
No. 6UKSL-11020237.
Solar cells (2) panels
Sony car radio with speakers
And more
Hull
Construction
Grade
5086H32 Aluminium; Plating ¼” to turn of bilge and 3/16” thereafter; foam above
waterline.
Note:
These details offered in good faith by owner. Drawn from surveys and current op
systems.
Leaving
on/taking off some equipment still under consideration: e.g., IPIRB, Sailing
Dinghy.
Photo Gallery
Here is a photo gallery of interest: It includes-
- Selected current photographs of Yacht Zulu 2013 to 2014, Okiato Pt., Russell, New Zealand 2014
- Yacht Zulu out cruising 2008 through 2013
- Original photographs provided on purchase, Vancouver Island, BC, Canada 2005
- Vuda Marina staff in Fiji singing the Goodbye Song to Zulu as we prepared to leave
- New beginnings

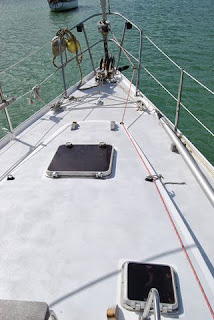

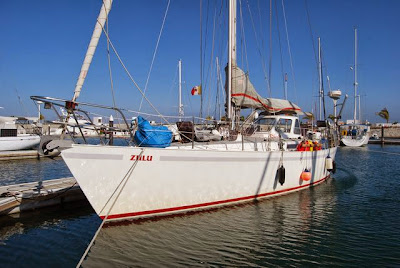

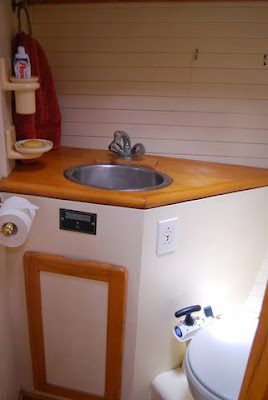

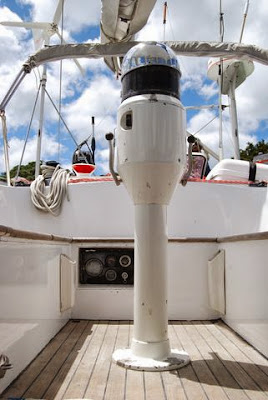

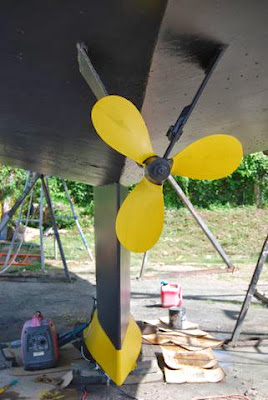

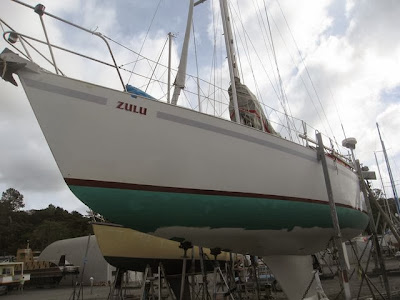

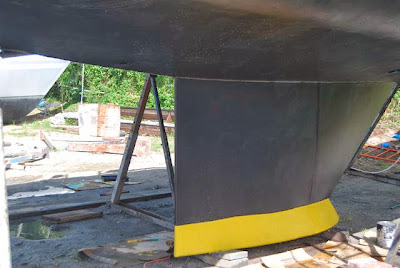

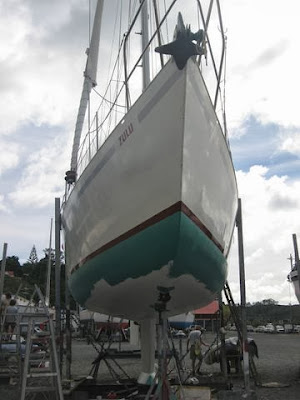

Selected current photographs of Yacht Zulu 2013 to 2014
.JPG)
.JPG)
l

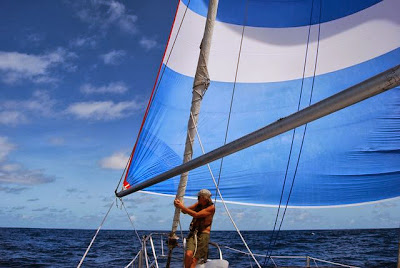

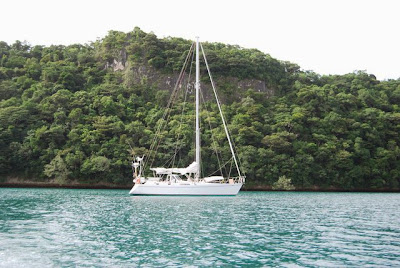

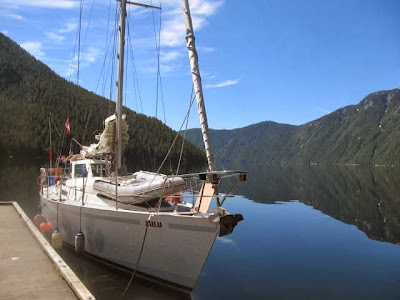

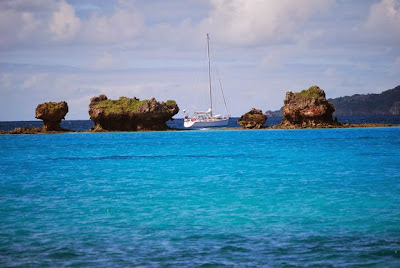

Out cruising with Yacht Zulu 2008 through 2013
.JPG)
.JPG)

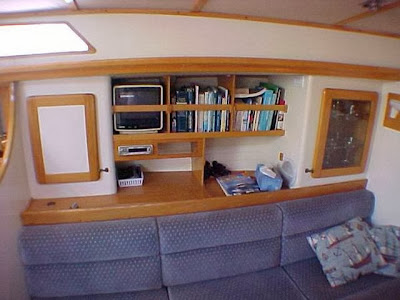

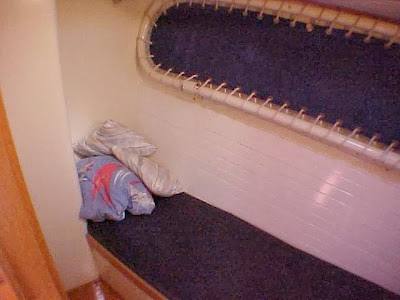

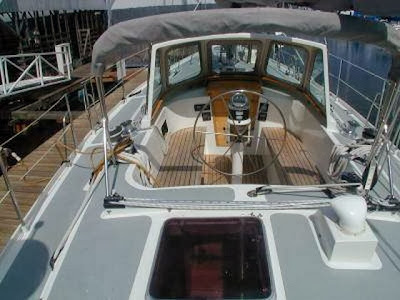

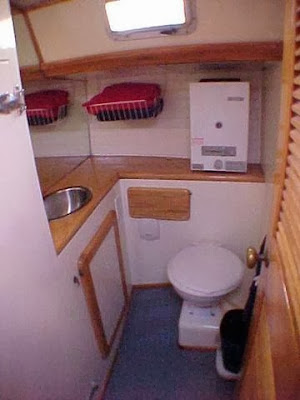

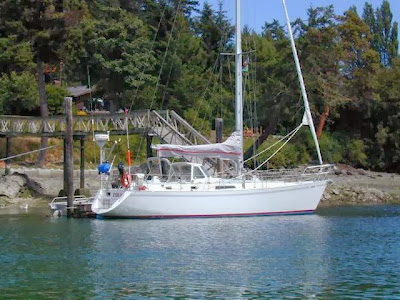

Original photographs of Yacht Zulu provided on purchase, Vancouver Island, BC, Canada 2005
Vuda Marina staff in Fiji singing the Goodbye Song to Zulu as we prepared to leave
New beginnings
.JPG)
.JPG)
.JPG)
